Roll crushers

Roll crusher is a mineral processing crushing machine which has rotors with special teeth, on small diameter shafts, driven by a high torque drive system. Here, the mineral particles are nipped and crushed as they pass between two rotors rotating in opposite direction at the same speed.

Roll crusher advantages:

  • high efficiency at work even with wet materials
  • low electric energy consumption
  • reliability and simplicity of operation
  • adjusting the gap between two rotors
  • protection from very hard (uncrushable) solids
  • homogeneity of a final product by particles size

Area of application of roll crushers

Roll crushers are used to crush building waste, marble, salts and slag, gypsum, chalk, coal, marl and other materials. Smooth rotors are intended for grinding materials of low and medium strength, and fluted rotors with teeth are used to crush materials with the strength of more than 120 MPa.

Operation and design features of roll crushers

The principle of operation of a roll crusher: rotation of two rotors in opposite direction, which provides crushing materials by compression and abrasion between the rotors. Main roll crusher consumables are rotors, which frequency of replacement depends on abrasiveness of processed materials, as well as on the grade of steel from which the rotors are made.

Roll crusher technical data

Twin roll crusher can be installed not only indoors, but also outdoors (using tents). Installation options: directly at a conveyor belt (on legs, platforms and foundations).

Twin roll crushers are very energy efficient machines with low power consumption. In addition, twin roll crushers are very reliable in use: a special protection mechanism of one of the rotors does not allow to feed uncrushable rocks into the machine.

Twin roll crusher catalogue

The crushing equipment factory «Tula Machines» produces roll crushers of various modifications. We kindly present to your attention standard models of roll crushers at the price of 595,000 rubles, as well as all the required auxiliary equipment: feeders, production lines, etc.

Our catalogue shows stationary twin roll crushing systems with various working parts (by working surface type): with smooth, fluted surfaces and surfaces with teeth. All the presented crushers can also be divided by rotor diameter and other technical parameters. Our managers are glad to help you to choose the most suitable products. Please call us at +7-800-700-46-86.

Roll crusher with fluted rotors DVR 2/500

Roll crusher with fluted rotors DVR 2/500 is intended for fine and medium size crushing chalk, marl, coal, clay shale, as well as grinding (with simultaneous crushing) viscous and wet ...
More detailed

Roll crusher with fluted rotors DVR 2L

Roll crusher with fluted rotors DVR 2L is intended for crushing lump materials of low and medium strength (70-120 MPa, 700-1200 kgf/cm 2 ) with moisture content of up to ...
More detailed

Roll crusher with smooth rotors DVG 2/500

Roll crusher with smooth rotors DVG 2/500 is intended for secondary crushing nonmetallic constructional materials of low and medium strength (up to 25 MPa): chalk, marl, coal, clay shale, as ...
More detailed

Roll crusher with smooth rotors DVG 2/800

Roll crusher with smooth rotors DVG 2/800 is intended for medium size crushing brittle materials (glass and ceramics waste), and also materials of low and medium strength. Main advantages of ...
More detailed

Roll crusher with smooth rotors DVG 200х125

Roll crusher with smooth rotors DVG 200×125 is intended for crushing brittle bulk materials of various strength, including for dry crushing rocks. Roll crusher DVG 200х125 has small overall dimensions ...
More detailed

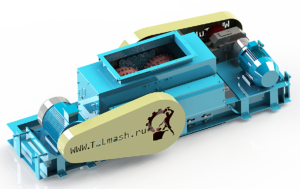

Roll crusher with teeth DVZ 2/500

Teeth of the crusher are located chequerwise on rotors, which provides better catching processed materials. Roll crusher with teeth DVZ 2/500: Technical data *** Parameters Values* Design capacity, m3/h Up ...
More detailed

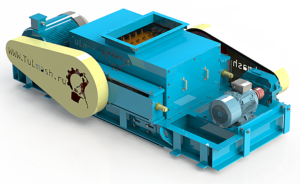

Roll crusher with teeth DVZ 2L

Roll crusher with teeth DVZ 2L

Roll crusher with teeth DVZ 2L is intended for crushing lump materials of low and medium strength (70-120 MPa, 700-1200 kgf/cm2) with moisture content of up to 25%. The crusher ...
More detailed
Roll crusher with teeth DVZ 2L-11

Roll crusher with teeth DVZ 2L-11

Roll crusher with teeth: special modification of DVZ 2L. It differs from the original crusher only in the length of its teeth on rotor pads and special cleaning knives. Such ...
More detailed

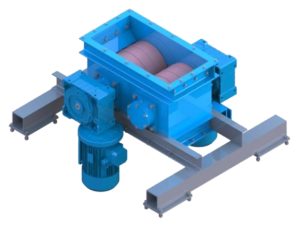

Roll crusher with teeth DVZ 2M

DVZ 2M is a twin roll crusher with fluted rotors with teeth, intended for medium size crushing brittle materials (glass and ceramics waste), as well as materials of low and ...
More detailed

Roll crusher with teeth DVZ-2/800

Roll crusher with teeth DVZ-2/800 is intended for crushing lump materials of low and medium strength. The crusher can be used in production lines and crushing complexes, as the first ...
More detailed
